• Durabed, pickup bed
• Push Button Start
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Recovery hooks, front, frame-mounted, Black
• Suspension Package
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Exhaust, single, side

• Wheels, 17" (43.2 cm) painted steel, Silver
• Tires, LT245/75R17E all-season, blackwall
• Tire, spare LT245/75R17E all-season, blackwall (Included and only available with (QHQ) LT245/75R17E all-season, blackwall tires with (E63) Durabed, pickup bed. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season, blackwall tires are ordered.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumpers, front, Black
• Bumpers, rear, Black
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.)
• Moldings, beltline, Black
• Cargo tie downs (12), fixed rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Taillamps with incandescent tail, stop and reverse lights
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirrors, outside power-adjustable vertical trailering with heated upper glass, lower convex mirrors, integrated turn signals, manual folding/extending (extends 3.31" [84.25mm]) (Standard on Regular Cab models. Not available with (PCV) WT Convenience Package on Regular Cab. Included and only available with (PCV) WT Convenience Package on Double and Crew Cab models.) (Standard on Regular Cab models. Not available with (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package on Regular Cab. Included and only available with (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package on Double and Crew Cab models.)
• Mirror caps, Black
• Glass, solar absorbing, tinted
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection cap, top
• Tailgate, locking, utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package is ordered. Not available with (ZW9) pickup bed delete.) (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package is ordered. Not available with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no EZ Lift (Deleted with (ZW9) pickup bed delete.)
• Door handles, Black grained

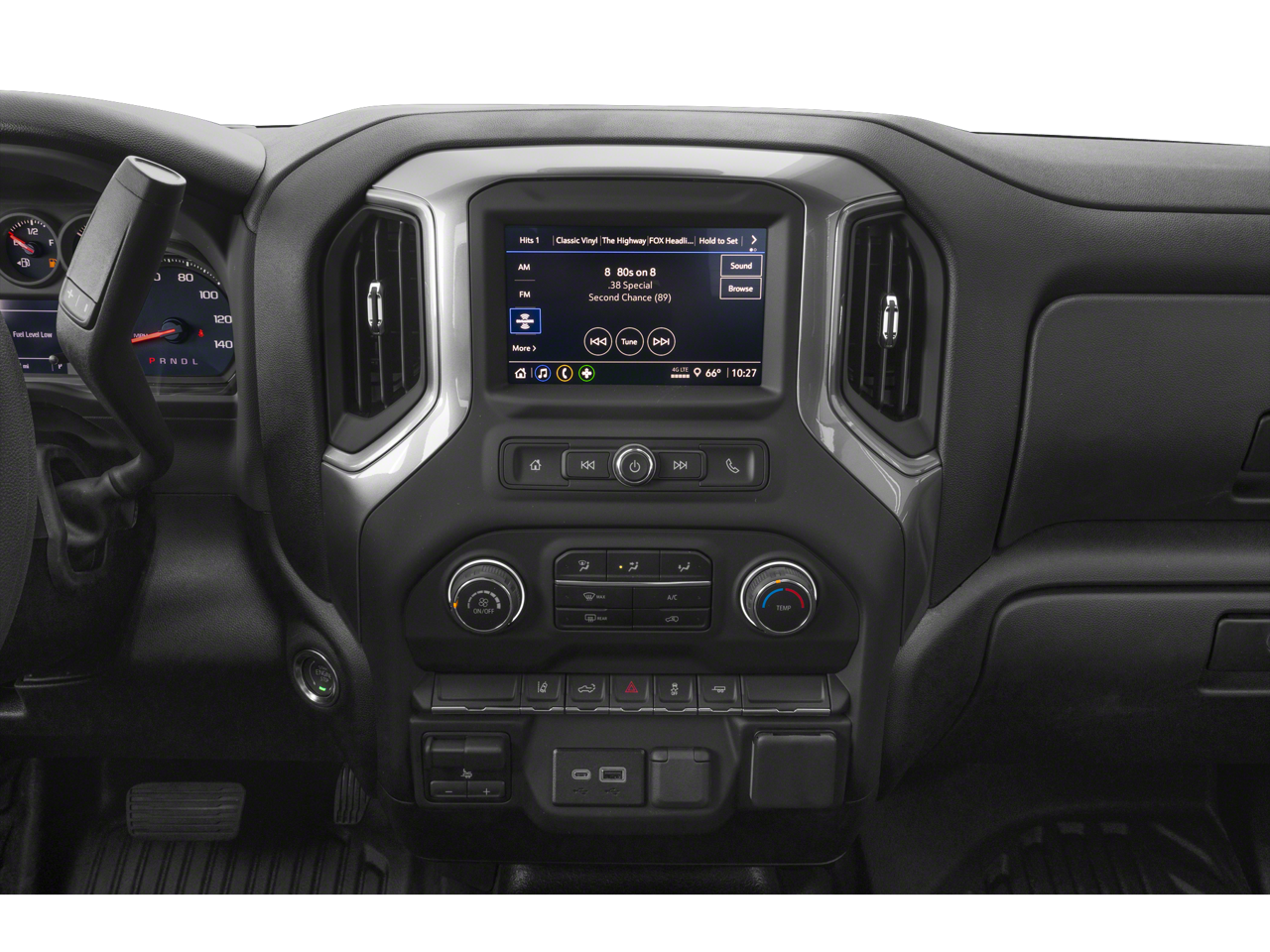

• Audio system, Chevrolet Infotainment 3 system 7" diagonal HD color touchscreen, AM/FM stereo, Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Wireless Apple CarPlay and Wireless Android Auto compatibility
• Audio system feature, 2-speakers (Requires Regular Cab model.)
• Wireless phone projection for Apple CarPlay and Android Auto
• Bluetooth® for phone connectivity to vehicle infotainment system
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Vinyl seat trim
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Door locks, power
• Remote Keyless Entry with 2 transmitters
• USB Ports, 2, Charge/Data ports located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Automatic Emergency Braking
• Front Pedestrian Braking
• StabiliTrak stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• HD Rear Vision Camera (Deleted when (ZW9) pickup bed delete is ordered.)
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System
• 3 Years of Remote Access. The Remote Access Plan gives you simplified remote control of your properly equipped vehicle and unlocks a variety of great features in your myChevrolet mobile app. See dealer for details. (Remote Access Plan does not include emergency or security services. See onstar.com for details and limitations. Available on select Apple and Android devices. Service availability, features and functionality vary by vehicle, device, and the plan you are enrolled in. Terms apply. Device data connection required.)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available with (ZW9) pickup bed delete.)

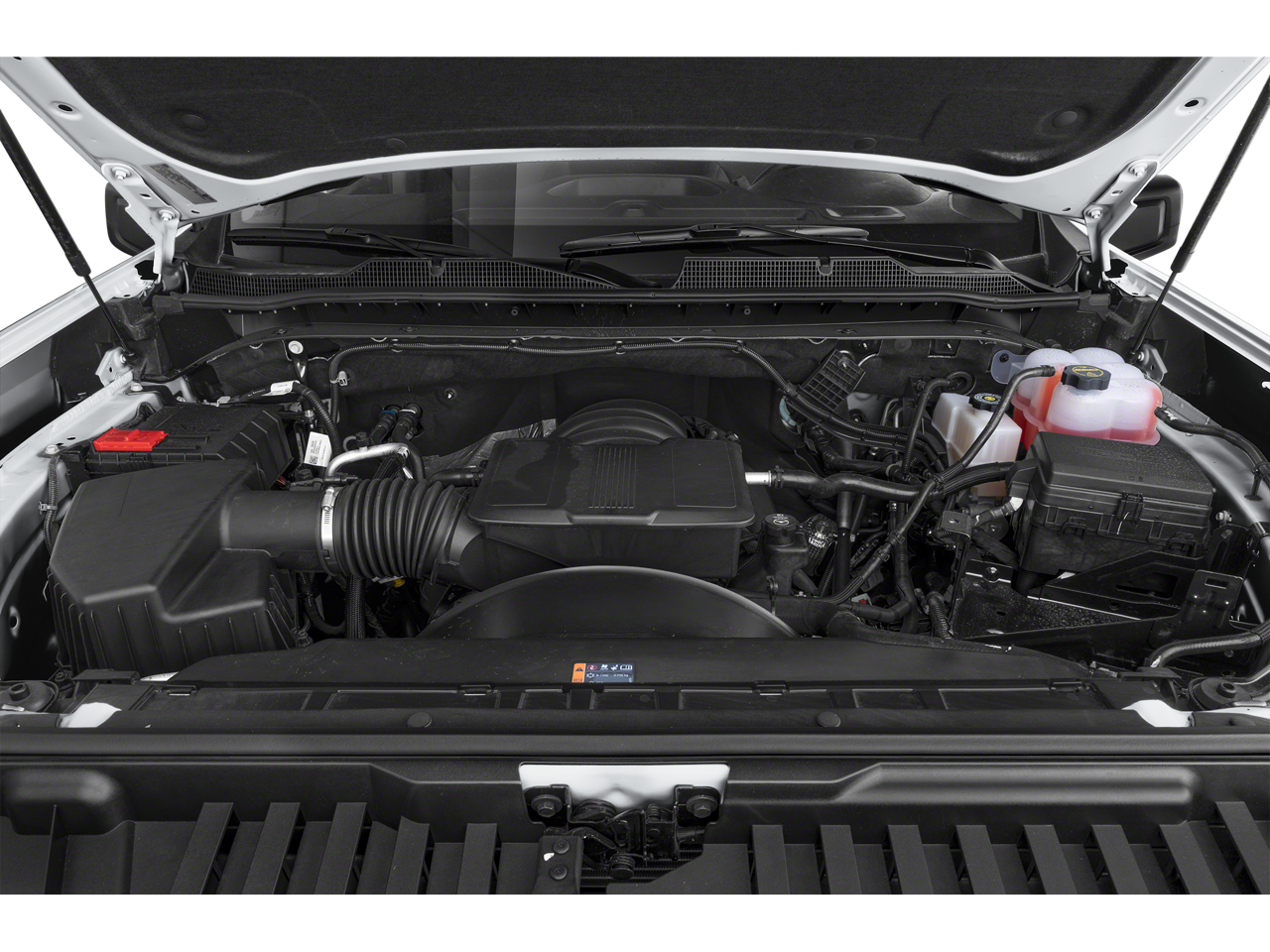

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

• POWER OUTLET INTERIOR 120-VOLT (400 watts shared with (KC9) bed mounted power outlet)
• PICKUP BED DELETE includes capped fuel fill (SFW) Back-up alarm calibration (9J4) rear bumper delete (9L3) spare tire delete and spare tire carrier delete.
• SKID PLATES protect the oil pan front axle and transfer case
• LICENSE PLATE KIT FRONT
• WHEELS 17 (43.2 CM) PAINTED STEEL SILVER (STD)
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• SNOW PLOW PREP/CAMPER PACKAGE includes (KW5) 220-amp alternator includes increased front GAWR on Heavy Duty models (NZZ) skid plates (transfer case and oil pan) pass through dash grommet hole and roof emergency light provisions.
• DEFOGGER REAR-WINDOW ELECTRIC
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS lower convex mirrors turn signal indicators puddle lamps perimeter lighting auxiliary lighting power folding/manual extending (extends 3.31 [84.25mm]) Includes (DD8) auto-dimming rearview mirror.
• TRANSMISSION ALLISON 10-SPEED AUTOMATIC (STD)
• STEERING COLUMN TILT-WHEEL MANUAL with wheel locking security feature (Beginning February 27 2023 through June 4 2023 certain vehicles will be forced to include (N37) manual tilt/telescoping steering column that will remove the (N33) Tilt-Wheel manual steering column. Does not include later dealer retrofit. See dealer for details or the window label for the features on a specific vehicle.)
• BUMPER FRONT CHROME
• REAR CAMERA KIT Kit includes camera fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com
• SEATS FRONT 40/20/40 SPLIT-BENCH with covered armrest storage and under-seat storage (lockable) (STD)
• GLASS DEEP-TINTED
• UPFITTER SWITCH KIT (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories.
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• JET BLACK VINYL SEAT TRIM
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• SUMMIT WHITE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• LOWERED GVWR 10 000 LBS. (4536 KG) lowers GVWR and significantly decreases towing and/or payload ratings
• WT CONVENIENCE PACKAGE includes (QT5) EZ Lift power lock and release tailgate (AKO) tinted windows (C49) rear-window defogger (K34) cruise control
• BUMPER REAR DELETE
• CRUISE CONTROL ELECTRONIC with set and resume speed steering wheel-mounted
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7 diagonal HD color touchscreen AM/FM stereo Bluetooth® audio streaming for 2 active devices voice command pass-through to phone Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)
• ALTERNATOR 220 AMPS
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• REAR AXLE 3.73 RATIO
• Keyless Start
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Daytime Running Lights
• Automatic Highbeams
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Smart Device Integration
• Bluetooth® Connection
• WiFi Hotspot
• Split Bench Seat
• Vinyl Seats
• Floor Mats
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• MP3 Capability
• Auxiliary Audio Input
• Power Outlet
• A/C
• Front Collision Mitigation
• Front Collision Warning
• Front Collision Mitigation
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Lane Departure Warning
• Front Collision Warning
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 3777
• Curb Weight - Rear (lbs): 2644
• Gross Vehicle Weight Rating Cap (lbs): 10250
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4575
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 141.55
• Length, Overall (in): 235.59
• Width, Max w/o mirrors (in): 81.75
• Height, Overall (in): 79.94
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.19
• Ground Clearance, Rear (in): 10.19
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 43.11
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.06
• Front Hip Room (in): 60.9
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Regular Cab Pickup
• Body Code: E63
